One system, two constructions The SoccerGround mini-pitch

Design your mini-pitch Classic or Advanced?

1,006: mini-pitches in the DFB project
1 m: board height, sound-insulated
3 m: ball stop behind the goals
TÜV GS: to DIN EN 15312

The system

The SoccerGround mini-pitch is the board system of the 1,006 DFB mini-pitches: 1 m high sound-insulated sandwich-panel boards, goals with doors built into the steel structure, ball-stop nets behind both goals, all steel hot-dip galvanised. Tested as a complete system by TÜV Rheinland and certified to DIN EN 15312 for freely accessible multi-sport equipment, so the pitch can be used unsupervised.

The pitch comes in two constructions that differ only in how they stand on the ground: the Classic is set in concrete with posts in socket foundations, the Advanced stands free, usually without foundations. Boards, goals, nets, sizes and options are the same, and both are designed in the same configurator.

Which construction suits your site?

The difference is the ground, not the sturdiness.

Anchored

SoccerGround Classic

The posts are set in concrete socket foundations, as in sports-ground construction to DIN 18035 Part 7. The system of the 1,006 DFB mini-pitches.

The ground

The soil is excavated, filled with sand, gravel and chippings and compacted, then the socket foundations are built to our construction plan. A local contractor usually does this work.

Typical for

Sports grounds, schools, clubs, councils: sites that are being laid out anew.

Choose the Classic if the ground is being rebuilt anyway or the pitch will stay in this place for good.

SoccerGround Classic Installation requirements (PDF)

Free-standing

SoccerGround Advanced

Stands free on the existing ground, usually without foundations*: a structurally certified steel handrail makes the system rigid, so the boards cannot bend or tip.

The ground

A level, load-bearing surface is enough, for example asphalt, concrete or paving. Nothing is dug up, and the pitch can even be moved later.

Typical for

Schoolyards, car parks, rooftops and sites that must not be altered.

Choose the Advanced if the surface is already paved, foundations would be costly or the site is not final.

SoccerGround Advanced Installation requirements (PDF)

* Large pitches, multi-sport equipment and roof nets usually require a few ground anchors.

You don't have to decide now. In the configurator you design your pitch with size, colours and options; which construction suits your site, we work out with you from the ground. The two systems compared (PDF)

The same pitch, different equipment

Variants of the mini-pitch for special needs, each as Classic or Advanced.

The all-round sports facility

SoccerGround Multisport

Football, basketball, volleyball, badminton, football tennis and handball on one surface.

Learn more →

The pitch for your hall

SoccerGround Indoor

For sports halls, indoor football centres, shopping centres, trade fairs and hotels, sized to fit your hall.

Learn more →

Pitch and goal sizes

The size can be chosen freely, depending on the available space, the target group and the number of players. Several mini-pitches can be combined, so that games run side by side, board to board.

15 x 10 m Goals 3 x 2 m Children, teenagers and small teams, approx. 3 vs 3

20 x 13 m Goals 3 x 2 m DFB standard: children, teenagers and small teams, approx. 4 vs 4

30 x 15 m Goals 3 x 2 m Teenagers, adults and medium-sized teams, approx. 5 vs 5

40 x 20 m Goals 5 x 2 m Adults, pros and larger teams, approx. 6 vs 6 to 7 vs 7

All sizes compared, with numbers of players →

Downloads

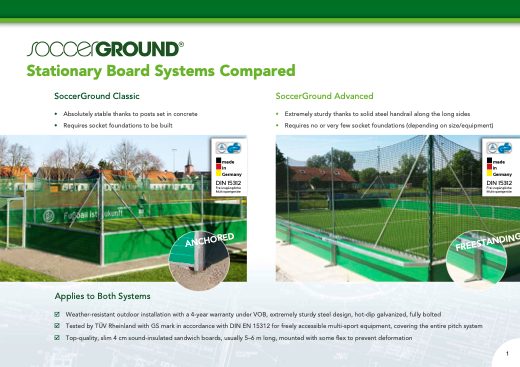

Classic and Advanced PDF · 1 page · 470 KB

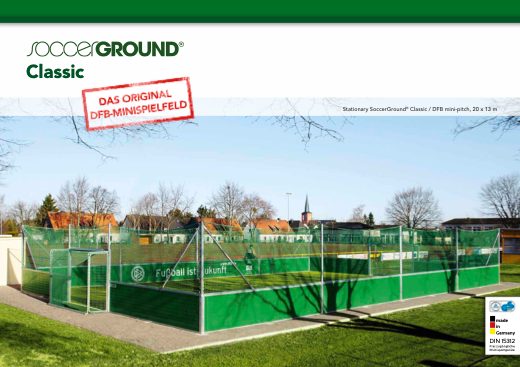

SoccerGround Classic / DFB Mini-Pitch PDF · 8 pages · 1.1 MB

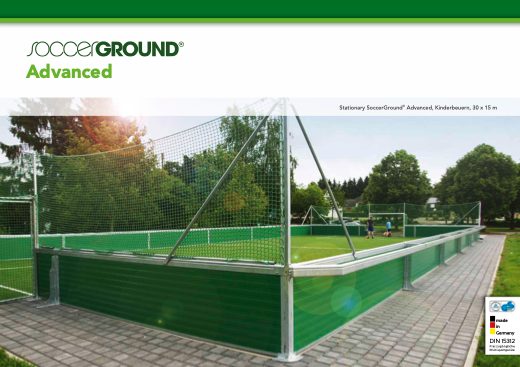

SoccerGround Advanced PDF · 9 pages · 1.1 MB

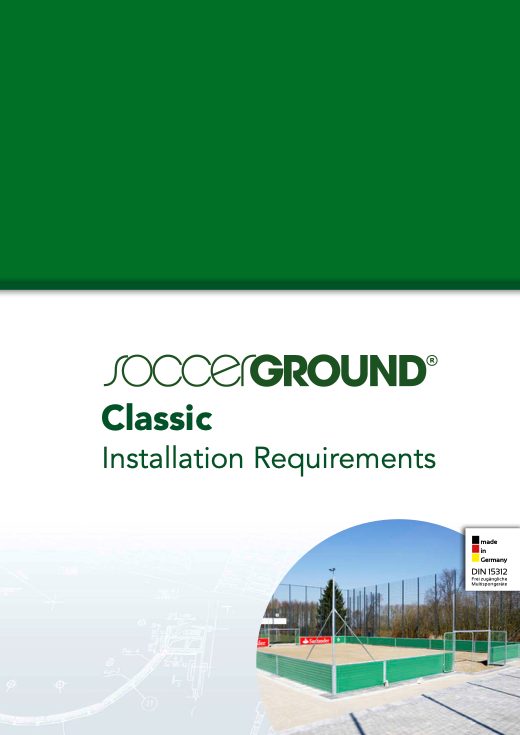

Installation Requirements Classic PDF · 11 pages · 2.9 MB

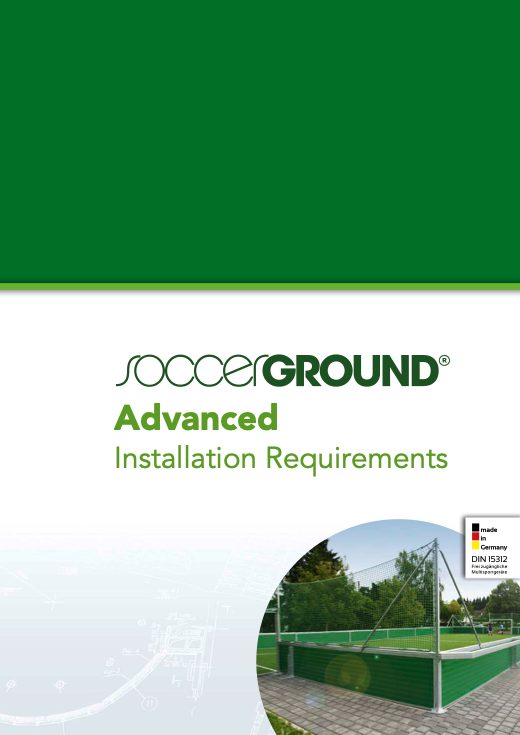

Installation Requirements Advanced PDF · 12 pages · 2.4 MB

Projects: Classic and Advanced

236 installations with photos, the latest here

Visa Street Soccer Park in Miami

Miami, FL, USA

Miami has a new place to play: the Visa Street Soccer Park brings two Bank of America pitches to the city, built with our SoccerGround mini-pitch system.

Product Info: Tandem Installation of 2 SoccerGround Advanced Systems 22m x 16m with removable panels between the courts.

Hauptschule Gifhorn

Gifhorn, Germany

New campus, new pitch: at the Hauptschule in Gifhorn, a secondary school in Lower Saxony, pupils now score points not only in lessons but at break time too! On the brand-new school grounds, our SoccerGround mini-pitch brings plenty of action, quick goals and lots of exercise in the fresh air.

Product Info: SoccerGround Classic 15x10m, Perimeter Netting up to the total height of 5m, Roof net, Basketball Add-On, Granulated Surface

Windheim Middle School in Steinbach am Wald

Steinbach am Wald, Germany

PE 2.0 at Windheim Middle School! The new SoccerGround mini-pitch in Steinbach am Wald is more than a football pitch: with equipment for basketball and volleyball, it becomes an arena for many sports. Ball-stop netting all round at 4 m high keeps the ball in play, and the artificial turf lies on shock pads. From now on, lessons and break times are full of action!

Product Info: SoccerGround Classic 15 x 10 m, multisport equipment for basketball and volleyball, ball-stop netting all round at 4 m high, surface: Polytan LigaGrass Synergy on shock pads

Sportplatz an der Schule Viöl

Viöl, Germany

Right in the heart of Viöl, a modern sports arena has been completed to boost local youth athletics: the new SoccerGround Classic at the Viöl school campus provides first-class training conditions for physical education and youth soccer teams well into the evening hours. Its central location seamlessly integrates active sports into everyday school life.

Product Info: SoccerGround Classic 20x13m, Perimeter Netting 5m high, Flood Light Solution

Two New SoccerGround Mini-Pitches in Miamisburg, OH

Miamisburg, OH, USA

Miamisburg’s soccer scene just picked up serious momentum. Thanks to Miamisburg Parks & Recreation, the athletic corridor along 4400 Medlar Road, right alongside the longtime home of the Medlar soccer grounds is now sporting two brand-new SoccerGround Classic Mini-Pitches. If you’ve spent a Saturday morning navigating the Medlar fields, you know how deeply rooted soccer is in this community.

Product Info: 2 x SoccerGround Classic 65' x 42', Regulation Futsal Goals, Professional Football Turf

See all projects

Plan your pitch

We advise you on construction, size, equipment and site, and send you a quote.

Design your mini-pitch Get in touch
